How to Insulate a Garage Door for Winter and Summer

That big metal rectangle on the front of your garage? It is bleeding money. A bare steel garage door offers about as much thermal protection as a sheet of aluminum foil taped over a window opening. During a cold snap, you can literally feel the chill radiating off it from three feet away. During summer, it turns the garage into an oven.

Sticking rigid foam panels onto the back of that door fixes the problem for under $150 and a lazy Saturday afternoon. No contractor needed, no permits, and honestly no real skill beyond operating a tape measure and a box cutter. I will walk you through the full process below, including which foam to buy, how to cut and fit it, and the one safety check most people skip that can wreck your door opener.

What Makes This Project Worth Doing in 2026

According to the US Energy Information Administration, the average American household now pays roughly $2,300 per year on electricity. Garages attached to living spaces are a massive weak point in home energy performance because that huge door panel sits there with almost zero thermal resistance. The Department of Energy says that plugging thermal gaps in unconditioned spaces can shave up to 15 percent off your annual heating and cooling costs.

But the energy savings are only part of the story. An insulated garage door also cuts down street noise, dampens the rumble of the opener mechanism, and makes the garage usable as a workspace even when temperatures outside are brutal. If you have ever tried sanding furniture or changing your oil in a freezing cold garage, you know what a difference 15 extra degrees of warmth makes.

And here is the thing about the economics: even a cheap foam board upgrade on a two-car door pays for itself within two heating seasons if your garage shares a wall with a bedroom or kitchen. On a detached garage, you will not see the same utility bill impact, but comfort inside the space improves dramatically.

Picking the Right Foam for Your Climate

Four types of insulation work on garage doors. Each has a different price point, a different thermal rating, and different quirks you should know about before you buy.

Foam Type	Thermal Resistance	Budget (standard 2-car door)	Moisture Behavior
EPS (white beadboard)	Around R-4 per inch of thickness	$50 to $80	Can absorb some water over time
XPS (pink or blue boards)	R-5 per inch of thickness	$70 to $120	Closed cell, resists moisture well
Polyiso (foil-faced boards)	R-6+ per inch of thickness	$100 to $160	Foil face reflects radiant heat too
Reflective barrier kits	Manufacturer claims R-4 to R-8	$60 to $100	Thin, mainly blocks radiant transfer

The smart buy for most garages: Walk into Home Depot or Lowe's and grab the pink (Owens Corning) or blue (Dow) XPS boards in the 1.5-inch thickness. At that thickness, each panel delivers a combined R-7.5, handles humidity without degrading, and cuts with a simple box cutter. You will spend around $80 to $100 covering a full 16-by-7-foot door.

Avoid fiberglass batts entirely on a garage door application. Steel doors develop condensation when outdoor and indoor temperatures differ, and fiberglass wicks up that moisture like a sponge. Within six months, the batts sag, smell musty, and eventually drop off. Spray foam bonds permanently to the metal, which makes any future door service or replacement a costly ordeal.

Materials List and Cost Breakdown

• Rigid foam panels (1 to 1.5 inches thick, enough sheets to cover your door's panel count)
• Sharp utility knife or box cutter plus spare blades
• Measuring tape and a long straightedge or drywall T-square
• Foam-safe adhesive (Loctite PL 300 or Gorilla Heavy Duty, only if friction fit is too loose)
• Foil tape for sealing edges
• Pencil or marker
• Safety glasses and work gloves
• Step stool for the upper sections

Grand total at the register: anywhere from $50 to $150. If you prefer a boxed kit (Reach Barrier 3009 at roughly $70, Owens Corning kit around $90, or Cellofoam for $55 to $65), everything comes pre-bundled. Kits are convenient but typically thinner foam with a lower thermal rating than what you get buying full-thickness boards separately.

The Installation Process From Start to Finish

Measure Every Single Panel Recess

Garage doors split into horizontal sections, and each section has rectangular pockets formed by the steel framing. Grab your tape measure and record the height and width of each pocket individually. Do not assume they are all identical. On doors older than about ten years, the framing may have warped or shifted by a fraction of an inch, and those fractions add up when you are trying to get a tight friction fit.

Score and Snap the Foam to Size

Lay a foam sheet flat on the garage floor. Transfer your pocket dimensions onto it with a pencil, add roughly a quarter inch of extra material on each side, and score along a straightedge with the box cutter. Two firm passes will cut through XPS or EPS cleanly. That quarter-inch oversize is deliberate: it lets the cut piece wedge snugly into the metal framing without any adhesive holding it there.

For reflective barrier rolls, scissors work better than a knife. Follow the tab and tape layout included in the packaging.

Test the Fit Before Committing

Push each cut piece into its matching pocket. It should snap in place and stay there on its own. If a piece binds too tightly and bows outward, trim a thin sliver off one side. If it drops out, you will need to tack it down with adhesive later. Spending five minutes on a dry fit now saves you from discovering a bad measurement after glue is already on the door.

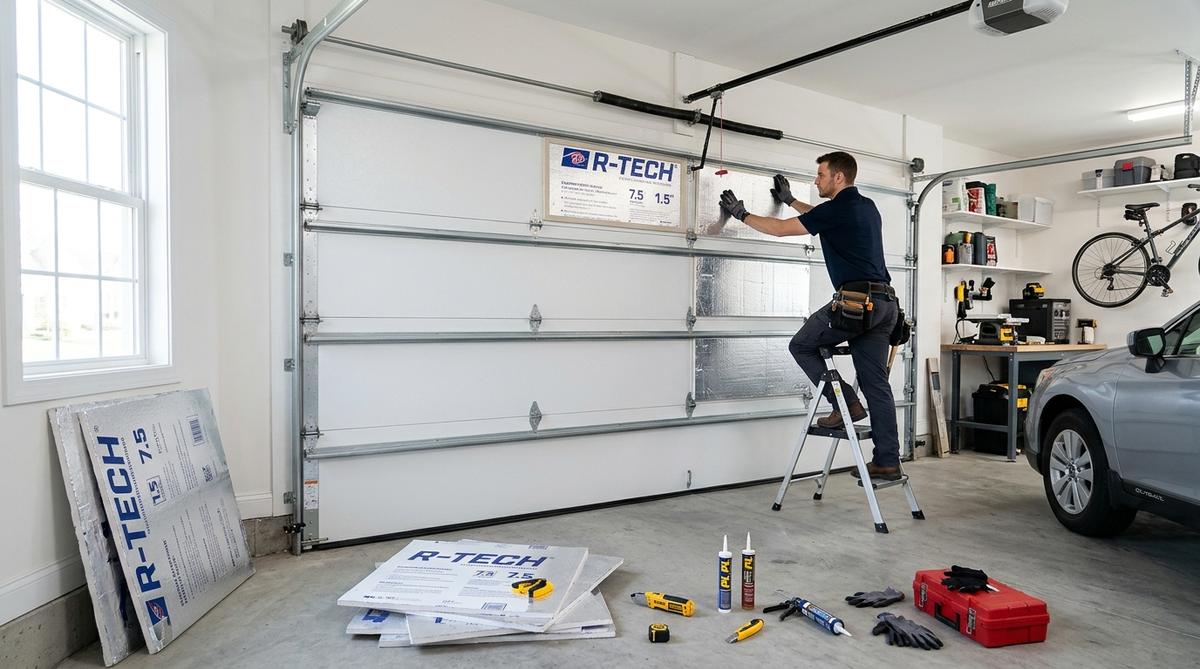

Attach the Panels Starting at the Bottom

If the friction fit holds, you are already done with this step. The metal rails on each door section keep the foam from shifting during open and close cycles, and the beauty of a pressure fit is that you can pull panels out years from now without leaving any residue.

For loose-fitting pieces, run a bead of foam-compatible adhesive along the inner lip of the pocket. Press the panel in firmly and count to thirty. One critical warning: never grab a tube of generic construction adhesive without checking the label. Products containing acetone or petroleum-based solvents will eat through polystyrene foam on contact. Loctite PL 300 is specifically formulated for foam bonding.

Work your way up from the lowest section to the highest. Reaching the top row is a lot easier when you are not bending over panels you just glued into the bottom sections.

Tape the Seams and Perimeter Gaps

After every panel is seated, run strips of foil tape along any visible gaps between foam edges and the metal frame. This prevents air from sneaking behind the insulation and circulating against the bare steel, which would rob you of a chunk of the thermal benefit you just installed.

The Spring Balance Test (Do Not Skip This)

Here is the step that separates a solid install from one that trashes your opener mechanism. Foam panels add somewhere between 15 and 30 pounds of total weight to the door depending on material density and door dimensions. Your garage door springs are factory-calibrated to counterbalance the door's original weight, and even 20 extra pounds throws that calibration off.

To check: close the door fully, then pull the emergency release cord so the door disconnects from the motorized opener. Now grab the handle and lift the door by hand to about waist height. Let go. A balanced door hovers roughly in place, maybe drifting slowly in one direction. If the door drops like a rock, the springs are under-tensioned for the new weight and need professional adjustment. If it flies upward (unlikely after adding weight), the springs are too tight.

Torsion spring adjustment is genuinely dangerous. Those springs store enough energy to break bones if they release unexpectedly. Unless you own winding bars and have done this before, hire a garage door tech. The service call runs $75 to $150, which is cheap compared to an emergency room visit.

Kit vs. Custom: Which Route Saves More?

Boxed kits bundle pre-cut panels, adhesive, and a set of instructions designed for the most common door sizes. They cut your prep time in half and often include a shiny reflective layer that adds a bit of radiant heat blocking.

The downside? Kit panels are typically 3/4 to 1 inch thick, topping out at roughly R-4 or R-5. Custom-cut 1.5-inch XPS gives you R-7.5 at a similar price point. And if your door has any nonstandard features (carriage-house raised panels, arched window inserts, oddball dimensions), a generic kit simply will not fit correctly. For those doors, buying individual foam sheets and cutting them yourself is the only option that produces clean results.

Five Pitfalls That Sabotage the Whole Project

• Neglecting the bottom weatherseal. That rubber gasket running along the door's lower edge is your primary draft blocker. If it is cracked, compressed flat, or peeling away, replace it before touching the panels. New bottom seals cost $10 to $25 and swap out in about fifteen minutes. Insulating the door while ignoring a blown-out bottom seal is like wearing a puffy jacket with no zipper.
• Using solvent-based glue. Regular Liquid Nails, contact cement, and anything with acetone in the ingredients will chemically dissolve polystyrene foam. You will watch your freshly cut panel shrivel and melt right on the door. Always confirm the adhesive label says "foam safe" or "polystyrene compatible."
• Blowing off the balance test. An overloaded opener motor burns out faster, the drive gear wears down, and an unbalanced door can drop without warning. That 60-second manual check is the most important quality control step in this whole project.
• Insulating the door but ignoring the rest of the garage envelope. Cracks around the door frame, gaps where pipes or wires penetrate walls, and single-pane windows all bleed air. Seal those first with caulk or canned expanding foam. Otherwise you are plugging one hole while three others stay wide open.
• Going with fiberglass on metal. Steel doors generate condensation whenever inside and outside temps diverge. Fiberglass absorbs that moisture, breeds mold colonies, and falls apart. Closed-cell rigid foam boards are immune to this problem.

When a Brand New Insulated Door Makes More Sense

Retrofitting foam onto an existing door is the right call when the door itself is still in decent shape. But if your current door is dented, rusting, or so old that the rollers and tracks are shot too, a factory-insulated replacement might be the smarter investment. New insulated steel doors with injected polyurethane cores run $800 to $1,500 for a single-car size and $1,200 to $2,500 for a double-car (professionally installed). These factory doors carry thermal ratings of R-12 to R-18 out of the box, which is two to three times what you can achieve with retrofit foam panels.

The decision is straightforward: structurally sound door that just needs thermal help? Spend $100 on foam. Door that needs replacing anyway? Put that $100 toward the new one and get superior insulation built in.

Real Numbers on Energy Savings

Oak Ridge National Laboratory tested the impact of garage door insulation in attached homes across different climate zones. Their findings: upgrading a bare steel door to roughly R-8 in a northern climate (think Minneapolis, Chicago, Boston) reduced the attached home's annual heating energy by 3 to 5 percent. On a typical $1,200 winter heating bill, that translates to $36 to $60 back in your pocket every year. Your $100 foam investment breaks even in under three seasons.

For homes in milder climates like the Carolinas or Pacific Northwest, the savings are smaller but still real. And if you use the garage as an active space (home gym, woodworking shop, band practice room), comfort gains matter more than the utility bill math.

Already tackled weatherizing the rest of your home? The garage door is usually the last big gap left in the building envelope, and closing it finishes the job.

Frequently Asked Questions

Can you insulate a garage door that has windows in it?

Absolutely. Insulate every solid panel around the windows and leave the glass alone. If you want to improve the windows too, stick a 3M or Duck Brand window film kit over each pane. The shrink-film adds about R-1 to the glass and knocks down drafts without blocking natural light.

Will the extra weight burn out my garage door opener?

Foam boards add a modest amount of weight, typically 15 to 30 pounds across the whole door. Any opener rated at 1/2 HP or above handles that without breaking a sweat. The real concern is spring tension, not motor capacity. If the springs are properly balanced for the added load, the opener barely notices the difference.

How many years will rigid foam insulation last on a garage door?

XPS and polyiso boards maintain their shape and thermal properties for 20 years or longer. They do not compress from normal door cycling, and they shrug off humidity. Reflective radiant barrier kits tend to lose adhesion faster, and the foil facing can delaminate after five to seven years in a garage that sees big temperature swings.

Is R-8 good enough, or do I need R-12 or higher?

Jumping from R-0 (bare steel) to R-8 captures the vast majority of available thermal improvement. Going higher gives diminishing returns. Think of it this way: the first R-8 blocks roughly 80 percent of heat transfer through that surface. Doubling to R-16 only catches another 10 percent. Unless you are heating your garage to living-room temperatures all winter, R-8 from 1.5-inch XPS panels is plenty.
